Understanding the Speed Specifications
Thunderbolt 5 and USB4 Version 2.0 both introduce PAM-3 signaling as a replacement for the NRZ encoding used in earlier USB and Thunderbolt specifications. PAM-3 operates at 25GHz and uses three voltage levels to encode data, which increases the amount of information that travels across each physical lane compared to NRZ.[2]
High-bandwidth I/O is one half of the local data story; the other is the silicon that consumes it. The bandwidth-versus-capacity trade off that matters for AI workloads is broken down in our Tensor G5 analysis, which looks at the same ceiling from the chip side.
USB4 Version 2.0 delivers up to 80Gbps of bidirectional bandwidth using this PAM-3 signaling.[2] The symmetry means data flows at equal speeds in both directions simultaneously. This design supports tasks that involve continuous bidirectional data transfer, such as moving large video project files between external storage devices or running external boot drives with consistent read and write performance.
Thunderbolt 5 adds an asymmetric mode that delivers up to 120Gbps downstream alongside 40Gbps upstream, while also supporting the standard 80Gbps symmetric mode.[1] Intel's documentation identifies 8K external displays, external GPU enclosures, and high-bandwidth capture devices as primary use cases[1] where this asymmetric allocation provides concrete advantages over symmetric-only connections.

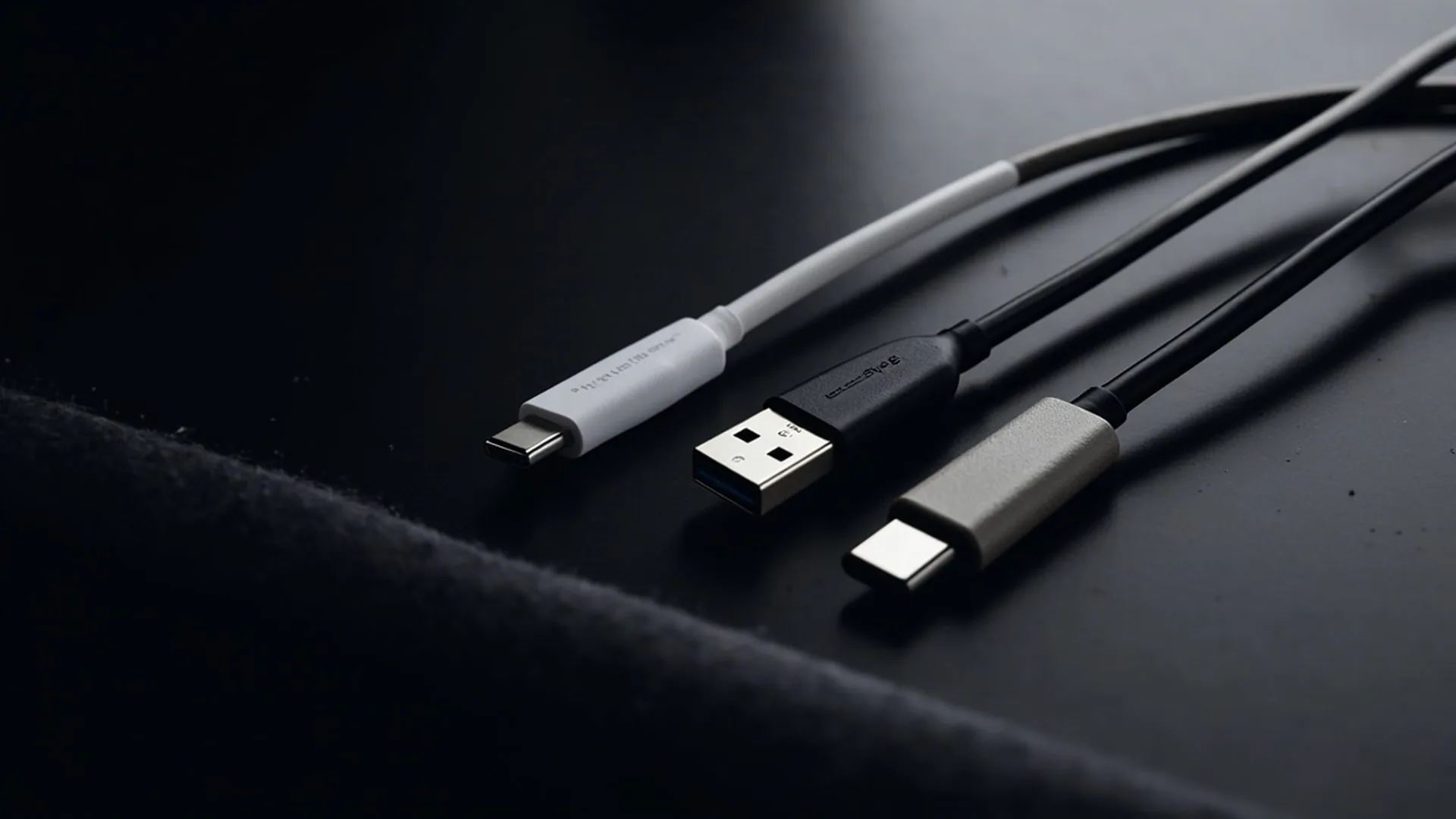

When building your hardware stack, purchase cables from reputable vendors that clearly state the standard they support. Generic cables claiming "USB-C 240W" without Thunderbolt or USB-IF certification often deliver neither the bandwidth nor the power delivery they advertise. The marginal cost savings on cables does not justify the performance loss or potential damage to expensive equipment.
Host Platform and BIOS Configuration
The host platform determines which high-speed standard you can use and what maximum bandwidth you can achieve. Thunderbolt 5 and USB4 Version 2.0 have different platform requirements, and mixing them incorrectly will result in lower speeds or no connection at all.
Intel's 14th and 15th generation desktop processors include native Thunderbolt 5 controller support. This covers Raptor Lake refresh chips and the Arrow Lake architecture found in Core Ultra 200 series processors. Motherboards based on Intel's 700-series and 800-series chipsets expose Thunderbolt 5 capability through designated ports on the rear I/O panel or front panel headers. You do not need an add-in card on these platforms.
AMD's situation requires more attention. Ryzen 7000 and Ryzen 9000 series processors support USB4 Version 2.0 at up to 80Gbps, but the implementation depends entirely on your motherboard manufacturer. Install the latest BIOS update from your board vendor to enable USB4 v2 functionality. Some boards shipped with USB4 v1 capability and received USB4 v2 support through firmware updates. Others still only offer USB4 v1 speeds. Check your specific motherboard model's support page for the current USB4 specification level.[3]
BIOS settings affect Thunderbolt 5 performance more directly than USB4 v2. Intel's platform firmware includes controls for PCIe tunneling, which determines how much bandwidth the Thunderbolt controller allocates to PCIe devices versus video output. The relevant settings typically appear under USB configuration, Thunderbolt configuration, or advanced chipset menus depending on your motherboard vendor. Enabling full PCIe tunneling mode reserves the maximum bandwidth for storage and external GPU use cases. Some firmware defaults throttle PCIe tunneling to ensure stable multi-display operation, which reduces available bandwidth for storage transfers.
After configuring BIOS settings, verify your controller status in the operating system. On Windows, open Device Manager and expand the Universal Serial Bus controllers section. You should see an entry labeled Intel Thunderbolt 5 Controller or USB4 v2 Controller depending on your platform. A yellow warning icon indicates a problem. On macOS, the System Information utility shows Thunderbolt and USB4 controller status under the appropriate hardware section. The controller should report the correct specification level and link speed.
Both the host platform and the connected device needs to support the same standard to achieve maximum speeds. A Thunderbolt 5 host connected to a USB4 v2 device will negotiate down to USB4 v2 speeds. A USB4 v2 host connected to a Thunderbolt 5 device will operate at USB4 v2 speeds or possibly lower, depending on how the device handles the negotiation. This protocol gap is unavoidable without compatible endpoints on both sides of the connection.
Testing and Verifying Your Connection
Verifying that your Thunderbolt 5 or USB4 Version 2.0 connection delivers its rated bandwidth requires systematic testing. Raw specifications mean nothing if your setup leaves performance on the table. This section walks through the tools and procedures that confirm whether your hardware configuration actually achieves 80Gbps symmetric or 120Gbps asymmetric speeds.
Using CrystalDiskMark for Storage Throughput
Crystal Disk Mark 8.[4]0 serves as the standard tool for measuring sustained storage transfer speeds over high-bandwidth connections. Download the application from the developer's official site at crystalmark.info. The tool runs sequential and random read/write tests that expose bottlenecks in your data pipeline.
Before running any benchmark, connect your external NVMe drive or storage enclosure directly to the Thunderbolt 5 or USB4 v2 port you intend to test. Avoid using hubs, docks, or adapters in the data path during verification. These devices can limit bandwidth and give you false negative results.
Configure Crystal Disk Mark to run with test sizes of 1GiB or larger. Small test files do not exercise the full controller performance. Select the correct target drive letter for your external device. Run at least three consecutive test passes and record the average results. For a Thunderbolt 5 connection achieving full 80Gbps bidirectional performance, you should see sequential read and write speeds approaching or exceeding 3,000 MB/s. If your results fall significantly below this threshold, the connection may be negotiating at a lower speed tier or running through a bandwidth-constrained configuration.
Built-in Operating System Diagnostics
Windows Device Manager reveals the negotiated connection speed for Thunderbolt and USB controllers. Open Device Manager, expand the "Universal Serial Bus controllers" section, and locate your Thunderbolt or USB4 host controller. Right-click the controller, select Properties, and inspect the "Link Speed" field under the Advanced tab. This field shows whether the connection established at 80Gbps, 40Gbps, or 20Gbps.
On macOS, the System Information utility provides similar details. Select "Thunderbolt" from the Hardware section. Connected devices display their current link status and speed. A Thunderbolt 5 device connected at the highest available mode reports a link speed of 80Gbps or 120Gbps, depending on whether symmetric or asymmetric mode negotiated successfully. Lower values signal a configuration issue or a limitation on one or both endpoints.
Intel Thunderbolt Control Center and Vendor Utilities
Intel provides the Thunderbolt Control Center application for systems with Thunderbolt controllers. The utility displays a visual topology of connected devices and reports the negotiated speed for each link. Use this tool to confirm that your host platform and external device successfully negotiated the highest available mode.
Motherboard manufacturers including ASUS, MSI, and Gigabyte bundle their own diagnostics utilities with Intel-based platforms. These tools sometimes expose additional configuration options that affect PCIe tunneling bandwidth allocation. Consult your motherboard manual for details specific to your platform.
Interpreting Test Results
Sequential read and write speeds between 2,800 MB/s and 3,200 MB/s indicate a healthy 80Gbps connection. Speeds between 1,400 MB/s and 1,600 MB/s suggest the link negotiated at 40Gbps, which happens when either the host or device lacks full 80Gbps support. Speeds around 700 MB/s point to a 20Gbps connection, typically caused by incompatible cables or incorrect port configuration.
For Thunderbolt 5 asymmetric mode testing, connect an 8K display or external GPU enclosure and monitor refresh rate stability and frame pacing. Sustained high refresh rates without stuttering confirm that the 120Gbps downstream channel carries data without congestion.
Troubleshooting Failed Verification
If your benchmarks do not match expected performance, start with the simplest causes. Swap the cable with a known-good certified specimen. Verify that both the host and device firmware are current. Check that you have not accidentally enabled a lower-power mode in BIOS settings. Finally, confirm that no other bandwidth-intensive operations are running simultaneously on shared PCIe lanes.
Frequently asked questions
Is Thunderbolt 5 faster than USB4 v2?
In peak downstream bandwidth, yes. Thunderbolt 5 reaches 120Gbps downstream with 40Gbps upstream in its asymmetric mode, while USB4 v2 caps at 80Gbps in both directions. In the symmetric mode both standards are the same 80Gbps, so the speed advantage only appears in the asymmetric use cases, like a high-bandwidth capture device or an eGPU driving a display.
Can I use a USB4 v2 cable in a Thunderbolt 5 port?
Yes, but it will run at USB4 v2 speeds. The connector is identical (USB Type-C), so the port is physically compatible. The link negotiates to the highest common standard that both the host and the device support, so a USB4 v2 cable tops out at 80Gbps symmetric even in a Thunderbolt 5 port.
Do I need a special cable for 120Gbps?
Yes. The 120Gbps asymmetric mode requires a certified Thunderbolt 5 cable with the appropriate active or passive construction for the run length. Beyond roughly two meters, passive cables attenuate too much and you need an active cable with signal conditioning. Check the cable certification marking, not the connector shape.
Does USB4 v2 work on AMD motherboards?
It depends on the board. The processor (Ryzen 7000/9000) supports USB4 v2, but the implementation is up to the motherboard manufacturer, and not every board routes USB4 v2 to a front-panel or rear header. Install the latest BIOS and check the board specification, because the chipset alone does not guarantee the port is present or enabled.
How do I verify my connection actually hit 120Gbps?
Run a storage throughput test with CrystalDiskMark against an external NVMe enclosure, and check the negotiated link with the OS diagnostics or Intel Thunderbolt Control Center. A 120Gbps link should show near-line-rate sequential numbers from a fast NVMe drive; if you see roughly half that, the link negotiated to 80Gbps symmetric, which means one side of the connection does not support the asymmetric mode.
